Adams Engineering
TOP OF THE RANGE CNC EQUIPMENT BASED IN ILKESTON

We strive to invest in state of the art CNC equipment and milling machines. From traditional 3-axis to the latest 7-axis, we offer you the highest levels of precision manufacturing, rigorous quality control and lean time focus.


XYZ MINI MILL 560 HD
Excellent 3 axis VMC for producing high prcision milled componets



THE CITIZEN L32 TYPE VIII
Bigger brother to the A 20. This 7 axis machine allows us to machine parts up to 32mm diameter in one hit.

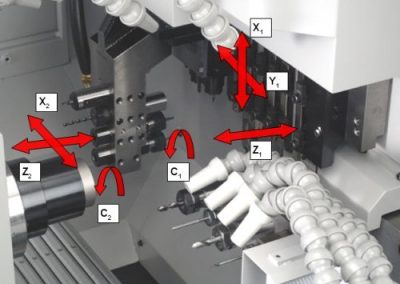

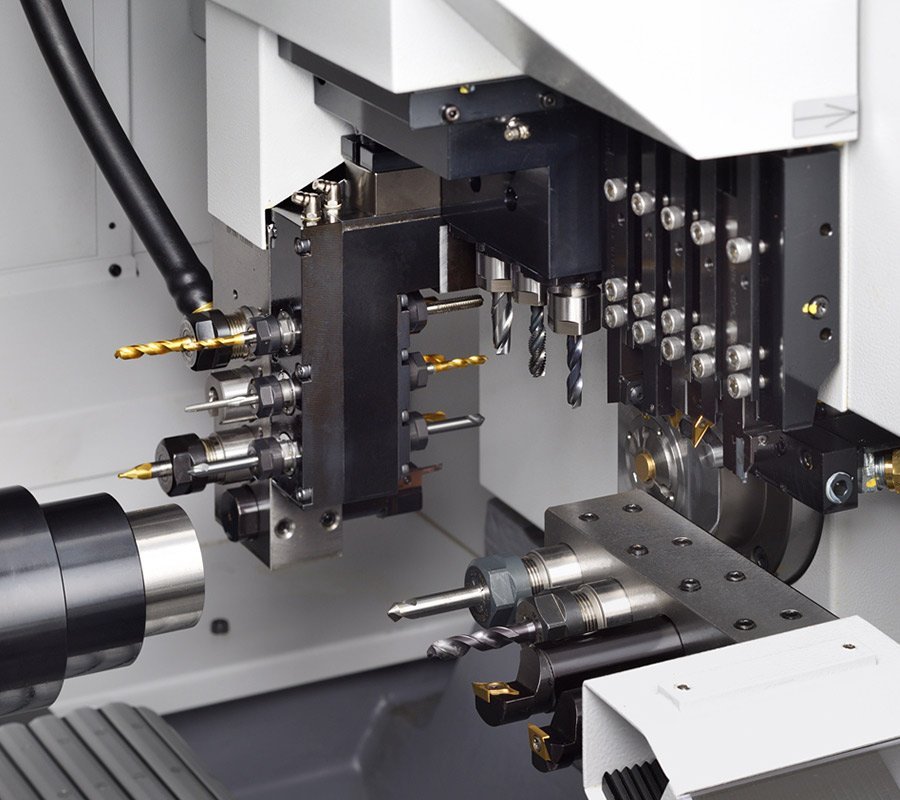

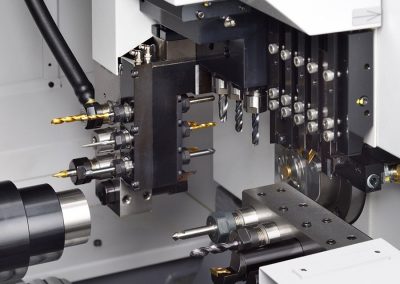

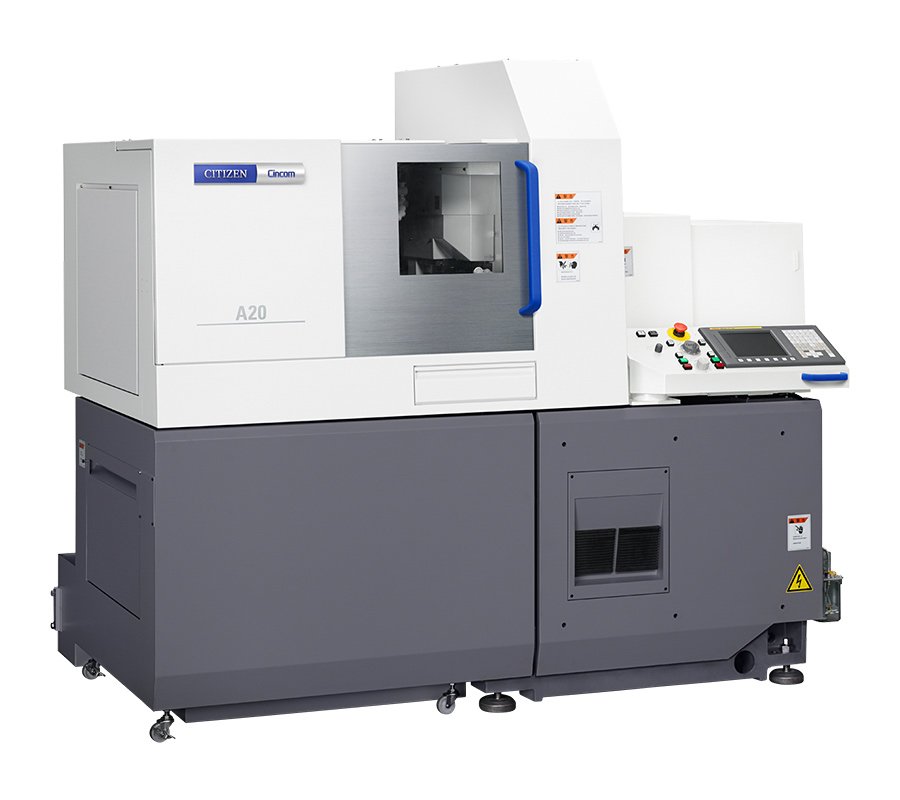

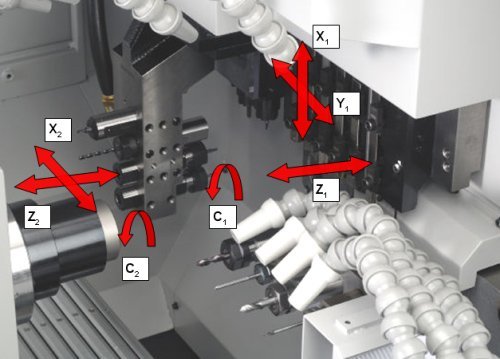

Item | A20VII | |
---|---|---|
Maximum machining diameter | ø20mm / ø25mm option | |
Maximum machining length | Guide-bush | 200mm |
Guide-bush-less | 2.5D(Max. 55mm) | |
Maximum drilling diameter for main spindle | ø10mm | |
Maximum tapping diameter for main spindle (tap,die) | M8 | |
Spindle speed | Max.10,000min -1 | |
Maximum drilling diameter for rotary tool | ø7mm | |
Maximum tapping diameter for rotary tool | M6 | |
Spindle speed of the gang rotary tool | Max.6,000min -1 (rating4,800min -1) | |
Maximum chuck diameter of back spindle | ø20mm | |
Maximum protrusion length of the back spindle workpiece | 50mm | |
Maximum drilling diameter in back machining process | ø8mm | |
Maximum tapping diameter in back machining process | M10 | |
Back spindle speed | Max.8,000min -1 | |
Number of tools to be mounted | 21 | |
Tool size | Turning tool | □12mm (□13mm, □16mm) |
Rapid feed rate | X1 axis | 18m/min |
X2 axis | 32m/min | |
Y axis | 32m/min | |
Z1 axis | 32m/min | |
Z2 axis | 32m/min | |
Motors | For spindle drive | 2.2/3.7kW |
For tool spindle drive | 0.75kW | |
For back spindle drive | 1.1/1.5kW | |
For cutting coolant oil | 0.25kW | |
Input power capacity | 6kVA | |
Center height | 1,050mm | |
Weight | 2,550kg |

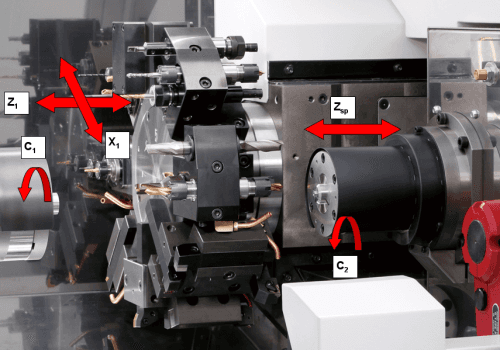

L32 Model | Type VIII | Type IX | Type X | Type XII |
Number of tools to be mounted | 30 | 36 | 44 | 40 |
Maximum machining diameter | ø32mm (35mm & 38mm option) | |||
Maximum machining length | GB machine | 320mm/chuck | ||
GBL machine | Workpiece diameterx2.5/chuck | |||
Maximum drilling diameter for main spindle | ø12mm | |||
Maximum tapping diameter for main spindle (tap, die) | M12 | |||
Spindle through-hole diameter | ø39mm | |||
Spindle speed | Max.8,000min -1 | |||
Maximum chuck diameter of back spindle | ø32mm | |||
Maximum drilling diameter in back machining process | ø10mm | |||
Maximum tapping diameter in back machining process | M12 | |||
Back spindle speed | Max.8,000min -1 | |||
Maximum drilling diameter for gang rotary tool | ø8mm | |||
Maximum tapping diameter for gang rotary tool | M6 (Cut tap) | |||
Gang rotary tool spindle speed | Max.6,000min -1 |
X travel | 560 mm |
---|---|
Y travel | 400 mm |
Z travel | 500 mm |
Table size | 610 x 370 mm |
Spindle centre to column | 455 mm |
Spindle to table | 100 – 600 mm |
Column front to table centre | 340 – 740 mm |
Rapid feed XYZ axis | 20 M/min Box Way |
Cutting feed rates | 1-20000mm/min |
Max table load | 300 kg |
T slot size | 16 mm |
T slot number & patch | 4 @ 80 mm |
Spindle speed | 5 – 8000 rpm |
Spindle motor | 18 HP / 13kW |
Spindle taper | BT 40 |
Tool magazine capacity | 12 |
